From container to a running k8s

Autor: A Zwick
9. Oktober 2021

Tags: k8s, tutorial, kubernetes, k3s

This tutorial shows how to set up a running k8s system by using the k3s distribution within just some minutes. Additionally, it provides a rudimentary introduction to some selected k8s key concepts.

As an example container we use a httpd webserver container (rather than nginx, in order to avoid confusion with nginx-ingress), but of course you may use any other container instead.

For k8s we use k3s, a lightweight but complete k8s distribution, which is also suitable for production environments.

We've tested this tutorial on Ubuntu, but it probably works the same or at least similarly on other systems.

1. Deploy k3s

Install k3s by curl -sfL https://get.k3s.io | sh - or have a look at: k3s.io

2. Deploy the container to k3s

As mentioned above: in our example we are using an apache httpd container, which serves as a web server.

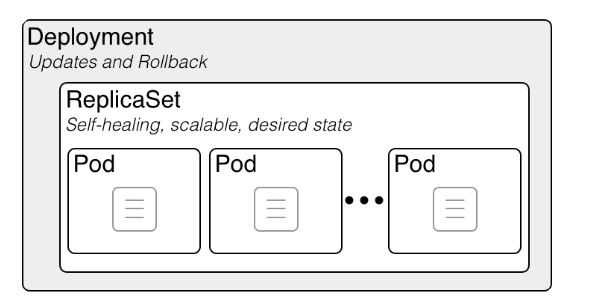

To run the container within k3s, we use the following common configuration structure:

  • The container runs in a k8s Pod
  • A ReplicaSet manages the Pod
  • A Deployment contains the ReplicaSet

Source: "wiki.ciscolinux.co.uk

The deployment file for our example looks like:

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: httpd-demo
  name: httpd-demo
spec:
  replicas: 1      # defines a ReplicaSet with 1 replica
  selector:
    matchLabels:
      app: httpd-demo    # manages pods with label httpd-demo
  template:
    metadata:
      labels:
        app: httpd-demo
    spec:
      containers:
      $ image: httpd
        name: httpd
        ports:
        $ containerPort: 80   # (optional) info about the port to be used
# replace $ by -

Save the file as httpd-deployment.yaml and apply it to k3s by:

sudo k3s kubectl apply -f httpd-deployment.yaml

After some seconds, you can check with:

sudo k3s kubectl get deployments

Or find out the pod's IP with sudo k3s kubectl get pods -o wide and check the httpd server with curl <ip> , which should show something similar to:<html><body><h1>It works!</h1></body></html>

3. Create a service for the pod to make access independent of its IP

Each pod has its own IP address, but pods are ephemeral in nature. A Deployment may destroy pods dynamically and recreate them with different IP addresses.

To ensure that a pod can always be connected to (independent of its ip-address), we use a k8s Service.

apiVersion: v1
kind: Service
metadata:
  name: webserver-svc
spec:
  ports:
    $ name: http
      port: 80
  selector:
    app: httpd-demo    # service refers to any pod with label "app: httpd-demo"
# replace $ by -


This (default) service type is sometimes also called a "cluster IP"-service.

After applying you may check the connection to the pod via the service by sudo k3s kubectl get services to show the IP and then connect with curl <ip>.

4. Make the pod accessible for the outside world

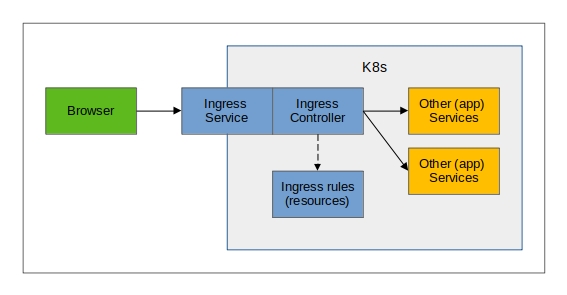

To make the service resp. pod accessible by the outside world, we need to configure ingress. Ingress is an object in k8s which provides reverse proxy functionality that allows access to internal services from outside k8s. An ingress configuration contains 3 parts:

  1. Ingress service
  2. Ingress controller
  3. Ingress rule

Point 1. and 2. are already covered by k3s, as k3s contains a built-in ingress service (of type load balancer) as well as a controller. As ingress controller k3s uses "traefik".

So, we just need to create an ingress rule.

Create an ingress rule

The config below will route the url path / to our webserver service (which on its turn will call our httpd container in the end :-) ).

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: mywebserver-ingress
  annotations:
    kubernetes.io/ingress.class: "traefik"
spec:
  rules:
  $ http:
      paths:
      $ path: /
        pathType: Prefix
        backend:
          service:
            name: webserver-svc
            port:
              number: 80
# replace $ by -

Again, after applying you may check with: sudo k3s kubectl get ingress --all-namespaces. Or check with address "http://localhost" in your browser, it will show the httpd message "It works!".

You're DONE!

You have set up and configured a simple, but complete k8s system with the container of your choice (or the httpd webserver from the demo) !
If you want to uninstall your k3s installation use /usr/local/bin/k3s-uninstall.sh .
